| Laser Power | 20 w, 30 w, 50 w |
| LAser Wavelength | 1064 nm |
| Repeating Frequency | 0 To 200 KHz |
| Beam Qulaity | M<2 |
| Marking Range | 100*100 mm to 300*300 mm |
| Marking Depth | 0.1 mm to 3 mm |
| Marking Speed | ≤10000 mm/sec |
| Min. Line Width | 0.01 mm |
| Min. Character | 0.15 mm |
| Repeatability Accuracy | ± 0.002 mm |
| Power Consumption | ≤800 W To ≤1500 W |
| Weight | 100 Kg To 120 Kg |
| Power Supply | 220 V ±10%, 50-60 Hz |
| Machine Dimension(L*W*H) | 800*650*1420 mm |

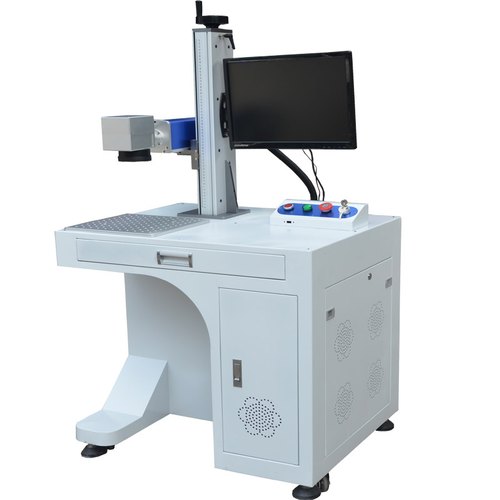

Brief Description:
Fiber laser cutting machines offer a superior industrial solution for product identification and traceability. It excels at Marking/Engraving/Coding/Itching on a wide range of metals with ease. Fiber laser cutting machine technology can mark on diverse substrates such as: All types of Plastics such as PP, ABS, PVC, PBT, PE, etc.
Laser marking utilizes a focused beam of light to permanently mark the surface of a material. When the beam interacts with the material's surface, it alters the material's properties and appearance.
- Brief Product Specification:
