Brief Description:

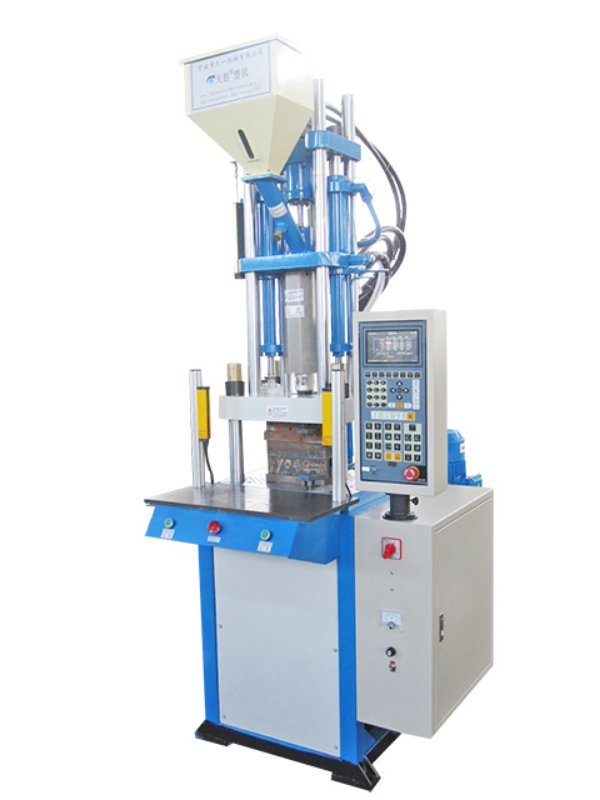

An injection molding machine also known as an injection press, is a machine used for manufacturing plastic products by the injection molding process.

It consists of two main parts, an injection unit and a clamping unit

  • Brief Product Specification:
Clamping Force 500 KN To 25000KN
Space Between Tie Bar 265*265 mm To 1850*1700 mm
Min./Max. Mould Height 100 mm To 1800 mm
Screw Diameter 26 mm To 200 mm
Injection Pressure 2130 Bar To 1274 Bar
Plastcising Capacity 6 g/s To 396 g/s
Motor Power 7.5 Kw To 55+55+55+25 Kw
Machine Dimension (LxWxH) 3.1*0.87*1.35 mtr. To 16.3*3.8*5.4 mtr.
Machine Weight 2 ton To 165 ton

The key issue in Plastic Injection Moulding Machines is the consistent shot speed, pressure, accurate and repeated clamping along energy saving. Variable pumps and servo-driven gear pumps are used in the machines to deliver saving of energy. Accordingly, the machines are available in various categories.

The key features:

  • Shot Weight gms: 50 ~ 32986
  • Clamping Force Kn: 500 ~ 25000
  • Space Between Tiebar mm x mm: 265x265 ~ 1850x1700

It is also a "Plastic Chair Making Machine"
