Brief Description:

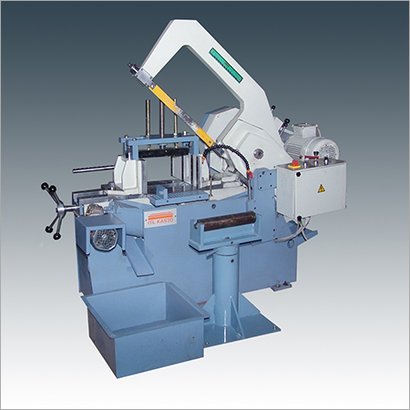

Our heavy-duty hydraulic hacksaw machine is really strong and cuts metal bars and squares very quickly. It's perfect for businesses that need to cut a lot of metal. This machine is built to be very accurate and efficient, so it's a must-have for any place that works with metal. It can cut different sizes of metal, and it's easy on the person using it. This machine uses special fluids to work smoothly and cut powerfully, making it perfect for everyday metal cutting jobs.

  • Brief Product Specification:
Model HP-200 / HP-300
Max. Dia 200 / 300 mm
Max. Square 175 / 250 mm
Motor Power .75 / 1.5 kw
Max. Blade Size 400 x 32 x 1.6 / 525 x 45 x 2.25
Max. Stroke Length 140 / 160 mm
Coolant Motor Power 0.09 kw
Net Weight 500 kg / 600 kg

Features:

  • Scraped Guideways with high accuracy.

  • High grade rigid casting.

  • Instant adjustment in feed is possible while cutting.

  • Speeds and feeds are provided to enable wide cutting condition.

  • Lifting of arm at the end of cut automatically.



Standard Accessories:

  • Coolant and electric motor.

  • Adjustable material stop.

  • One Hacksaw blade.



Optional Accessories:

  • Machine lamp

  • Adjustible bar rest

  • V-jaws for clamping

//
