Brief Description:

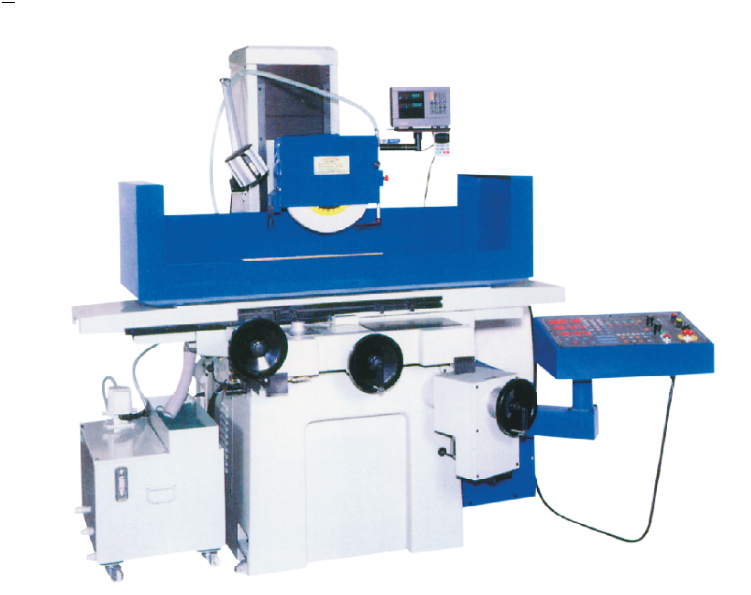

"Fine Tolerance and High Accuracy", These are the terms used for our Precigrind Surface Grinder. With Taiwan hydraulic Manifold, pump, Valve and Class P4 spindle bearing this machine works with low cost and breakdowns.

  • Brief Product Specification:
Model No. PG1020AH / PG1224 AH
Max. Workpiece to be Grounded 600 X 300 X 355 mm
Table Load 200 kg
Table Size 540 X 250 / 600 X 300 mm
Motor Power 1.5 / 2.2 kw
Spindle Speed 2850 / 1450 rpm
No. of T-Slots 14 X 1
Net. Weight 900 / 1300 kg

Features

  • Distance From Table Surface to Spindle Center(mm): 450 ~ 530
  • Designed and robustly constructed for a long and accurate working life with minimal maintenance
  • Base, Saddle, Table and Column offer High Rigidity combined with High Sensitivity for Ultra Precision
  • Working surface of table from 250 x 500mm to 700 x 2050mm
  • Max table travel from 270 x 550mm to 760 x 2120mm
  • Max surface ground from 250 x 500mm to 700 x 2020mm

Standard Accessories:

  • Permanent Magnetic Chuck.
  • Grinding Wheel
  • Wheel Dresser
  • Diamond Pen
  • Balancing Stand with Shaft
  • Puller for adaptor
  • Coolant System
  • Work Lamp
  • Tool Box with tools
