Brief Description:

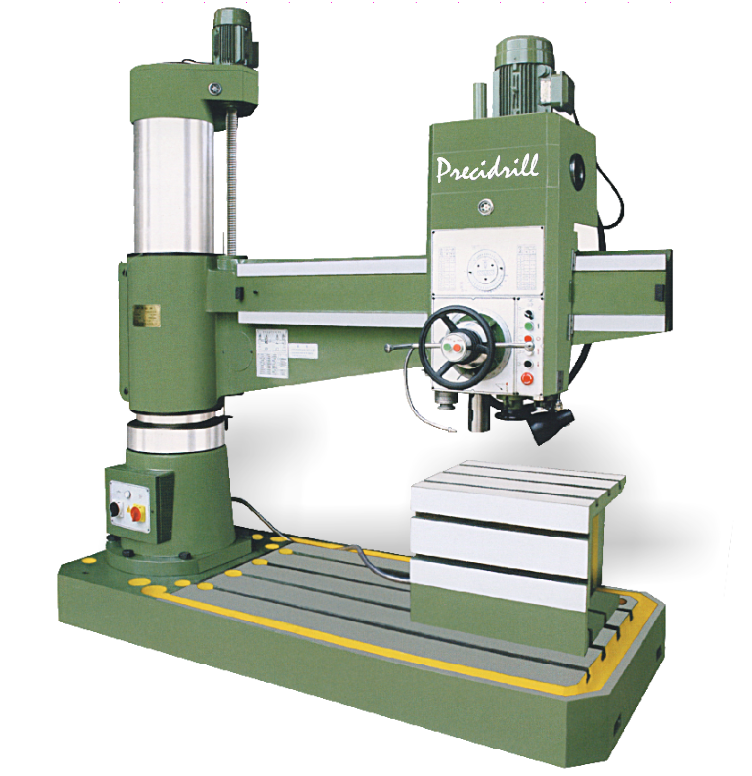

Radial Drill comes with various models with different capacities of drilling hole, radial arm of this machine rotates 360 degrees.

  • Brief Product Specification:
Model RDH3210, RDH4011, RDH5016
Drilling Capacity 32 mm / 40 mm / 50 mm
Travel of Spindle 120 mm / 270mm / 210 mm
Number Of Shaft 3.0, 4.0, 5.0, 6.0
Motor Power 1.5 / 2.2 / 4 Kw
Speed Range of Spindle 108 - 1100
Diameter of Column mm 180 ~ 280
Distance from Center line of spindle to the center of the column 520 / 680 / 1160 mm
Machine Weight 800 / 1600 / 2800 Kg

Features:

  • Precision ground arm ways
  • Max. Drilling Diameter 32-125
  • Head Stock Gears are hardened & Ground
  • Ergonomic operator-friendly controls on the head
  • Heavy ribbed cast iron base & arm
  • Hydraulic Clamping
  • Power arm elevation

Standard Accessories:

  • Box Table
  • Coolant Enquipment
  • Tool Box
  • Machine Manual

Optional Accessories:

  • Reducing Sleeve
  • Titling Worktable
