Brief Description:

LEADWELL bring innovation, quality assurance, world-class after sales service, and environmentally friendly machine tools to the worldwide marketplace. We strive to win the respect of both our customers and worldwide competitors alike.

  • Brief Product Specification:

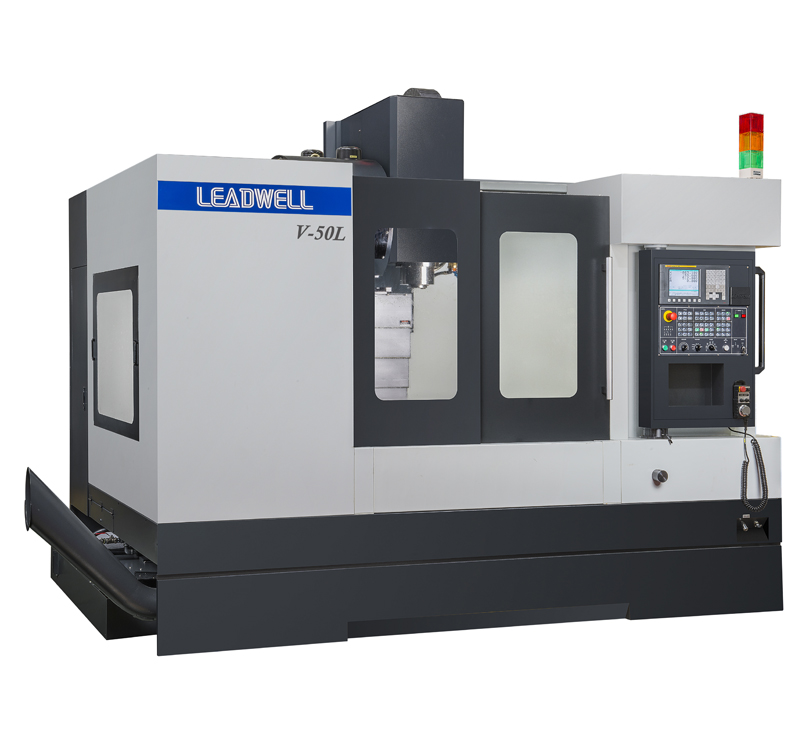

Model No. V-40iL / V-50L / V-60i / V-80i
Table Size 1120X610 / 1420X610 / 1550X750 / 2100x1000 mm
Travel X/Y/Z 1020x635x610 / 1270x635x610 / 1520x800x720 / 2040x1000x720 mm
Job Weight on Table 800 / 1000 / 1200 / 1800 kg
Distance between spindle & Table (Min- Max) 100-710 / 100-710 / 120-840 / 120-840 mm
Spindle Type BT-40, Belt or Direct drive / BT-40, Belt or Direct drive / BT-40, Belt or Direct drive / BT-40, Belt or Direct drive
Spindle RPM 10000 , 12,000 & 15000 opt. / 10000, 12000 & 15000 opt. / 10,000 , 12000 & 15000 opt. / 10000 , 12000 & 15000 opt.
Spindle Power 18.5 / 18.5 /15 / 15 kw
Machine Size (LxWxH) 3200x2200x2721 / 3810x2200x2721 / 3942x4017x3348 / 5464x4512x3335 mm
Machine Weight 6200 / 7000 / 10500 / 15100 kg

High Rigidity:

  • FEA Analysis
  • High rigidity structure design
  • Dual nuts ball screw deiwgn in X and Y axis
  • The new wider base and saddle improved machine rigidity
  • Saddle one piece design

High Reliability:

  • Roller type motion system
  • 3 Axis absolute motor
  • One piece telescope design in rear Y axis
  • Ball screw bearing lubrication system design
  • Front chip disposal system with surrounding coolant system

High Efficiency:

  • Rapid feed rate 48mm
  • Spindle speed 12,000/15,000 rpm(optional)
  • Tool change time T to T 1.8sec
  • Tool change time C to C 4sec

High Flexibility:

  • 30 tools magazine available
  • 4/5 axis rotary table available
