Brief Description:

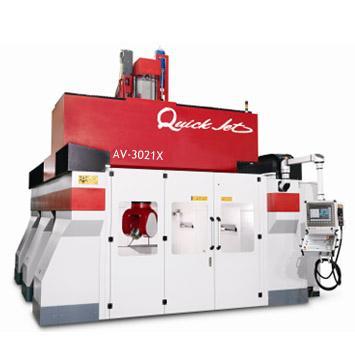

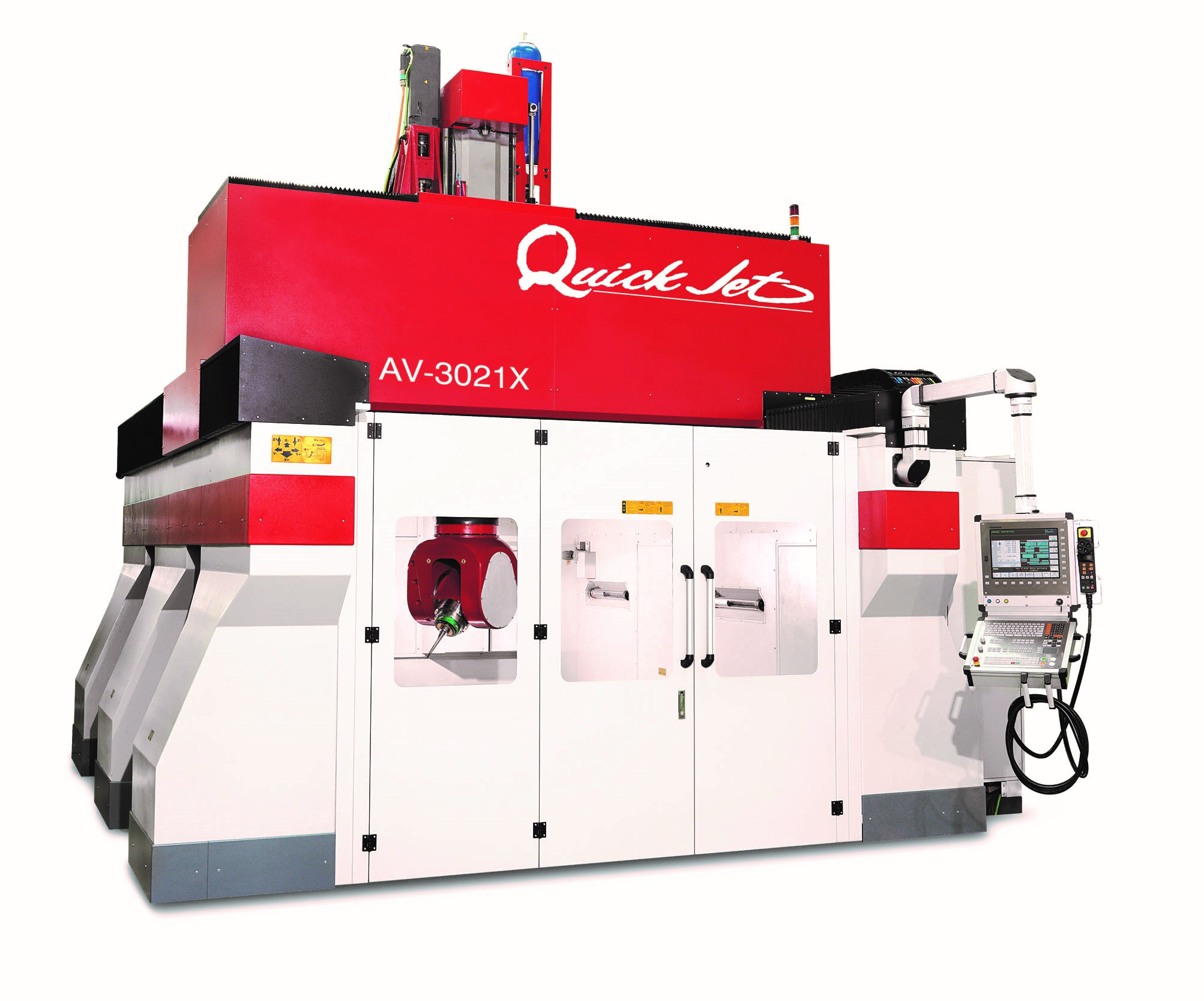

Quick Jet heavy duty 5-axis simultaneous structure design, especially developed for the tool, die and mould industry. Closed design of the double-beam and cross slide (box in box design) with internal, quadruple guided ram-type milling unit.

  • Brief Product Specification:
Model No. AV-120X / AV-1812X / AV-2516X / AV-3021X
Table Size 630x500 / 1200(ROTARY TABLE) / 2650X1950 / 3500x2500 mm
Travel X/Y/Z 1200x850x500 / 1800X1200X700 / 2500x1600x800 / 3000x2100x100 mm
Job Weight on Table 300 kg Simultaneous 500 kg Indexing / 4000 / 2500 / 7000 kg
Distance between spindle & Table (Min- Max) 0-672 / 0 / 200-1000 / 500-1500 mm
Spindle Type HSK-A63 / HSK-A63 / HSK-A63 / HSK-A63
Spindle RPM 24000 / 24000 / 26000 / 26000-24000-14000
Spindle Power 29 / 42 / 32 kw
Machine Size (LxWxH) 4660 x 4133 x 3490 / 4,755 x 4,750 x 4,065 / 5,340 x 5,035 x 4,953 / 7,896x6,095x5,057 mm
Machine Weight 15000 / 20500 / 35000 / 51000 kg

Features:

  • Constantly perfect cutting results by means of load and thermo symmetric design.
  • Execution as overhead gantry design, therefore controlled dynamic and accuracy.
  • Stationary work piece for constantly good surface qualities.
  • High productivity by means of roughing and finishing in one set-up.
  • Very compact machines, large working area in spite of extreme small floor-space.
  • Ergonomic operation by means of floor-level access to the machine tool.
  • Convincing cost-performance ratio.
  • 5-Axis machine always equipped with DCM (Dynamic Collision Monitoring).
  • Axis retracting function from tool axis direction when outside power failure.
