| Model No. | S430S / S500 / S1060 / S1270 / S1510 / S1880 / S2210 |
| Table Travel (X) | 400 / 500 / 1000 / 1200 / 1800 1500 / 2200 mm |
| Table Travel (Y) | 300 / 400 / 600 / 700 / 1000 / 800 / 1000 mm |
| Table Travel (Z) | 300 / 450 / 500 / 500 / 600 / 600 / 600 mm |
| Max. Workpiece Weight | 550 / 2300 / 4500 / 5000 / 11000 / 7000 / 9500 kg |
| Max. Electrode Weight | 120 / 200 / 350 / 400 / 500 / 500 / 500 kg |
| Max. Working Current | 60 / 90 / 120 / 120 / 120 / 120 / 120 A |
| Table Size (WxD) | 650 x 350 / 850 x 450 / 1250 x 750 / 1350 x 820 / 1580 x 1100 / 1850 x 1000 / 3100 x 1100 mm |
| Machine Weight | 1200 / 3000 / 5500 / 6500 / 14700 / 9000 / 19500 kg |
| Dielectric Tank Capacity | 380 / 850 / 1610 / 1875 / 3410 / 2715 / 5580 L |
Brief Description:

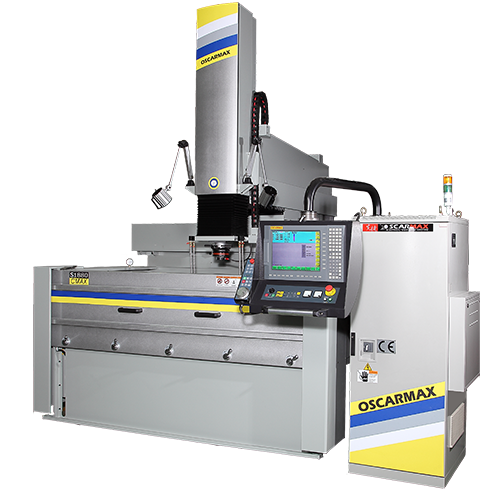

CMAX are advanced CNC series EDM machines featuring 3D Mode motion machining. The 6 axes are controllable with C, A, B axes which are optional electrode head. Moreover, it can be connected with robot hand, allowing to change the electrodes by the robot hand.
