| Model No. | S430S / S550 / S755 |
| Table Travel (X) | 400 / 500 / 700 mm |
| Table Travel (Y) | 300 / 400 / 550 mm |
| Table Travel (Z) | 180 / 200 / 300 mm |
| Max. Workpiece Weight | 550 / 1350 / 2000 kg |
| Max. Electrode Weight | 120 / 220 / 250 kg |
| Max. Working Current | 60 / 60 / 90 A |
| Table Size (WxD) | 650 x 350 / 800 x 450 / 1100 x 600 mm |
| Machine Weight | 1200 / 1950 / 3100 kg |
| Dielectric Tank Capacity | 380 / 520 / 1120 L |

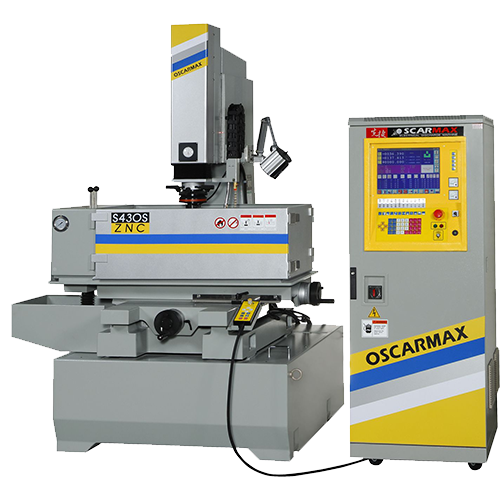

Brief Description:
ZNC,s are Conventional Edm comes with oil tank designed underneath of the machine body, where allows it to fit into facilities with limited floor space and working areas. x and y axis are operating manually with the hand wheel around the work table.
- Brief Product Specification:
