Brief Description:

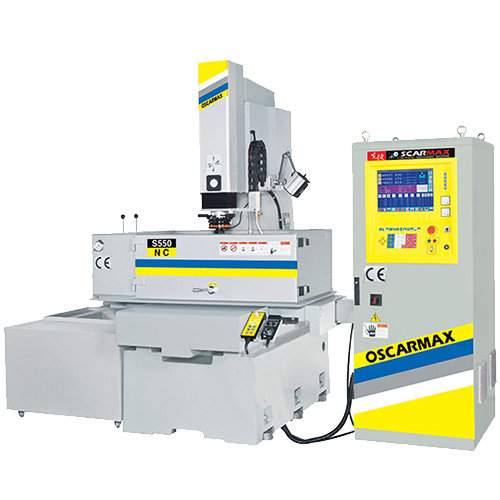

Numerical Control comes with a features of automatic positioning and side discharge machining. With its latest FUZZY intelligence function, it will automatically come out with the machining parameters

  • Brief Product Specification:
Model No. S430S / S550 / S755 / S500 / S1060 / S1270 / S1510 / S1880
Table Travel (X) 400 / 500 / 700 / 500 / 1000 / 1200 / 1500 / 1800 mm
Table Travel (Y ) 300 / 400 / 550 / 400 / 600 / 700 / 1000 / 800 mm
Table Travel (Z ) 180 / 200 / 250 / 350 / 500 / 500 / 600 / 600 mm
Max. Workpiece Weight 550 / 1350 / 2000 / 2300 / 4500 / 5000 / 11000 / 7000 kg
Max. Electrode Weight 120 / 220 / 250 / 200 / 350 / 400 / 500 / 500 kg
Max. Working Current 60 / 60 / 90 / 60 / 120 / 120 / 120 / 120 A
Table Size (WxD) 650 x 350 / 800 x 450 / 1100 x 600 / 850 x 450 / 1250 x 750 / 1350 x 820 / 1580 x 1100 / 1850 x 1000 mm
Machine Weight 1200 / 1950 / 3100 / 3000 / 5500 / 6500 / 14700 / 9000 kg
Dielectric Tank Capacity 380 / 520 / 1120 / 850 / 380 / 1875 / 3410 / 2715 L

Standard Accessories:

  • 15" LCD Screen
  • Auto Fire Extinguisher
  • Halogen Work Lamp
  • Clamping Plate
  • Leveling Pad
  • Flushing Nozzle
  • Patented Electrode Holder
  • Paper Filter
  • Drill Chuck
  • Tool Box
  • Remote Controller
  • M.P.G.
  • Signal Tower Light

Optional Accessories:

  • 3R / EROWA ATC 4/6T
  • COC280 Orbit Cut System (Online Connection)
  • Measuring Probe
  • Dielectric Cooler
  • Permanent Magnetic Table
  • EZ-SPARK for Super Hard Workpiece
  • High Speed Turbo Machining Circuit
