Brief Description:

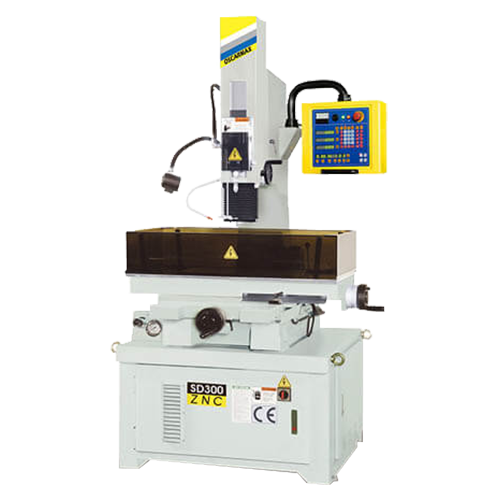

Oscarmax EDM machine utilizes FUZZY logic in spark machining. Simply input the material of the electrode and workpiece, along with the maximum and minimum current, and the controller automatically adjusts all machining parameters for both roughing and finishing operations. This innovative feature of the Oscarmax drill EDM machine enhances speed, precision, and surface finish on the workpiece while minimizing electrode wear.

  • Brief Product Specification:
Model No. SD300 / SD400 / SD550
Work Table (LxW) 460 x 210 / 600 x 300 / 800 x 450 mm
Table travel (X) 300 / 400 / 550 mm
Table Travel (Y) 200 / 300 / 400 mm
Servo travel 345 / 345 / 345 mm
Electrode Guide Travel (Z-axis Travel Included) 250 / 350 / 345 mm
Working Fluid and Capacity 45 / 45 / 45 L
Max. Workpiece Weigh 250 / 450 / 1000 kg
Machine Weight 1000 / 1200 / 1950 kg
Max. Machining Current 50 / 50 / 50 A

Features

  • "FUZZY" system & simply input the machining current then all other machining parameters will be set automatically.

  • Built-in machining parameters for applications.

  • Parameters may be adjusted at any time during machining.

  • Newly developed machining circuits special for small hole drilling to ensure quick, stable & fine machining.

  • Spindle retract after depth reached.

  • 3 Axes D.R.O. included.

  • Machining depth & coordinate display on the panel.

Standard Accessories

  • Paper

  • Toolbox

  • Electrode guide Ø1.0mm

  • Precision electrode holder Ø0mm-Ø3mm

  • Electrode tube Ø1.0mm

  • Halogen work lamp

  • X, T, Z-axes digital readout & encoder

  • Leveling pad

  • X, Y, Z-axes ball screw (SD350, 400, 550, 640)

Optional Accessories

  • Electrode guide.

  • Electrode tube.

  • ER type precision collet holder, capacity up to Ø6.35mm.

  • 4th axis (Z2 axis) (For CNC series)

  • Filter
