Brief Description:

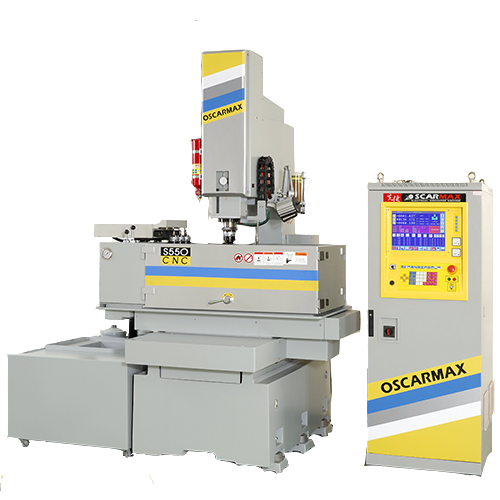

CNC Edm features with 2.5D Mode motion machining, with its latest FUZZY intelligence function, it will automatically comes back to its original machining parameters.

  • Brief Product Specification:
Model No. S430S / S500 / S550 / S1060 / S1270 / S1510 / S1880
Table Travel (X) 400 / 500 / 500 / 1000 / 1200 / 1500 / 1800 mm
Table Travel (Y ) 300 / 400 / 400 / 600 /700 / 1000 / 800 mm
Table Travel (Z ) 300 / 350 / 350 / 500 / 500 / 600 / 600 mm
Max. Workpiece Weight 550 / 2300 / 1350 / 4500 / 5000 / 11000 / 7000 kg
Max. Electrode Weight 120 / 200 / 220 / 350 / 400 / 500 / 500 kg
Max. Working Current 60 / 90 / 60 / 120 / 120 / 120 / 120 A
Table Size (WxD) 650 x 350 / 850 x 450 / 800 x 450 / 1250 x 750 / 1350 x 820 / 1580 x 1100 / 1850 x 1000 mm
Machine Weight 1200 / 3000 / 1950 / 5500 / 6500 / 3410 / 9000 kg
Dielectric Tank Capacity 380 / 850 / 520 / 1610 / 1875 / 3410 / 2715 L

Standard Accessories:

  • 15" LCD Screen
  • Auto Fire Extinguisher
  • Halogen Work Lamp
  • Clamping Plate
  • Leveling Pad
  • Flushing Nozzle
  • Patented Electrode Holder
  • Paper Filter
  • Drill Chuck
  • Tool Box
  • Remote Controller
  • M.P.G.
  • Signal Tower Light

Optional Accessories:

  • 3R / EROWA ATC 4/6T
  • Measuring Probe
  • Dielectric Cooler
  • Permanent Magnetic Table
  • EZ-SPARK for Super Hard Workpiece
  • High Speed Turbo Machining Circuit
