Brief Description:

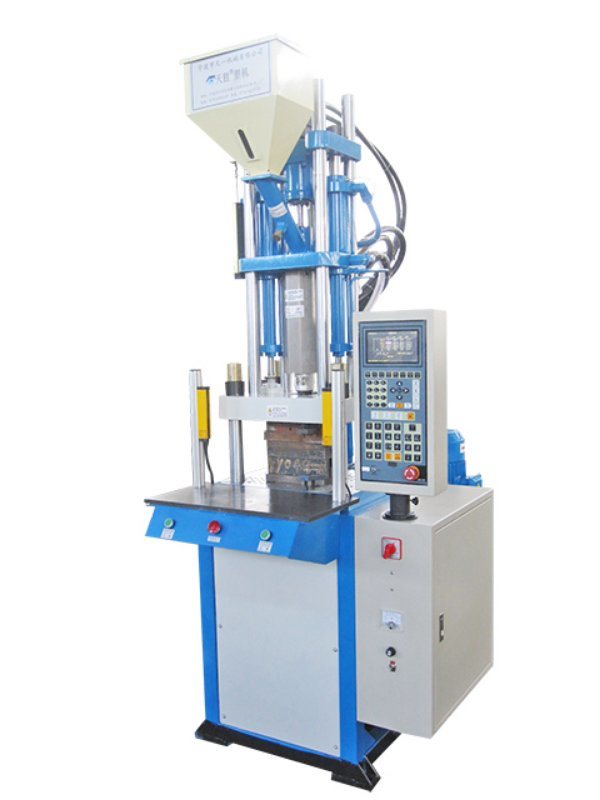

Vertical injection molding machines function the same as traditional horizontal machines, however they are orientated to operate on the vertical axis. This type of machine is available in hydraulic, electric and hybrid executions to meet a range of customer requirements.

  • Brief Product Specification:
Clamping Force 45 ton To 85 ton
Platen Size 530*270 mm To 560*330 mm
Slide Position Repeatable ±0.02
Min. Mould Height 175 mm To 210 mm
Screw Diameter 36 mm To 50 mm
Injection Volume 142 cubic cm To 353 cubic cm
Injection Weight 134 g & 4.7 oz To 333 g 11.7 oz
Injection Pressure 1851 kgf/cubic cm To 1305 kgf/cubic cm
Hopper Capacity 25 L
Pump Motor Power 7.5 kw To 11 kw
Machine Dimensions (L*B*H) 2.2*0.9*2.1 m To 3.2*1.2*2.5 m
Machine Weight 3.5 ton To 6.2 ton

Vertical moulding is a very efficient way to quickly and automatically create a string of flaskless high precision moulds that are vertically parted and poured.
