Brief Description:

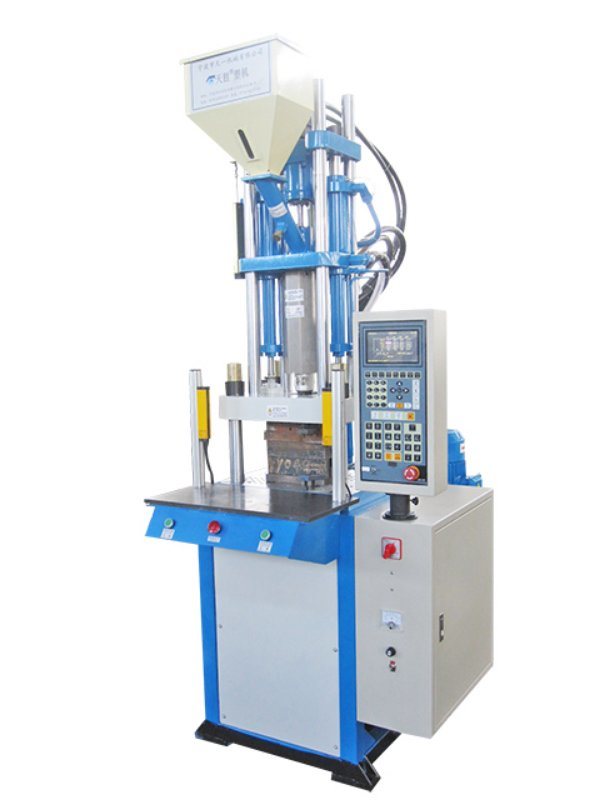

Vertical injection molding machines function the same as traditional horizontal machines, however they are orientated to operate on the vertical axis. This type of machine is available in hydraulic, electric and hybrid executions to meet a range of customer requirements.

  • Brief Product Specification:
Clamping Force 15 ton To 250 ton
Platen Size 390*250 mm To 1330*1060 mm
Space Between Tie Bars 275*135 mm To 910*640 mm
Min./Max. Mould Height 28/140 mm To 350 mm
Screw Diameter 22 mm To 70 mm
Injection Volume 38 cubic cm To 1000 cubic cm
Injection Weight 34 g To 900 b
Injection Pressure 1715 Sq.kgf/Sq.cm To 1478 Sq. kgf/Sq. cm
Pump Motor Power 4(4) kw To 30(4)
Machine Dimension 1.8*0.9*2.4 m To 2.8*1.53*5.5 m
Machine Weight 0.75 ton To 10.8 ton

Vertical moulding is a very efficient way to quickly and automatically create a string of flaskless high precision moulds that are vertically parted and poured.
