Brief Description:

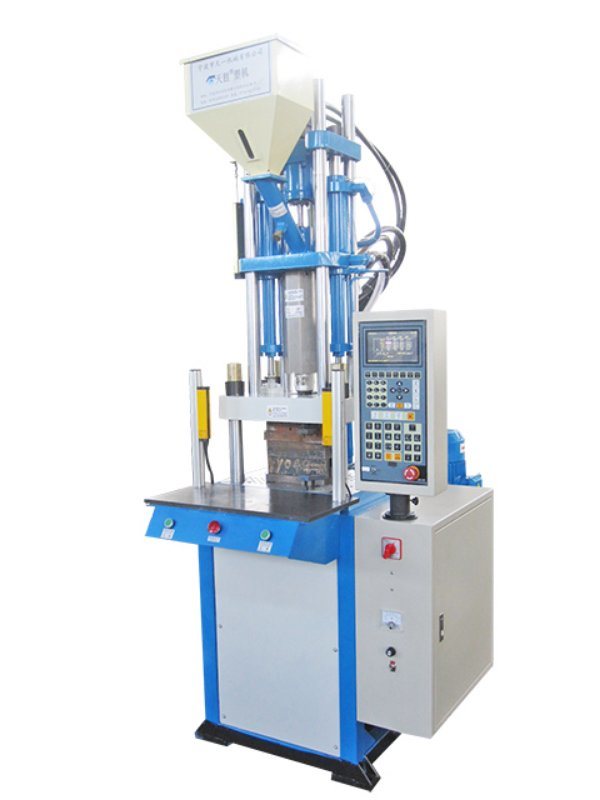

Vertical injection molding machines function the same as traditional horizontal machines, however they are orientated to operate on the vertical axis. This type of machine is available in hydraulic, electric and hybrid executions to meet a range of customer requirements.

  • Brief Product Specification:
Clamping Force 15 ton To 150 ton
Rotary Table Size ɸ580 mm To ɸ1400
Slide Position Repeatable ±0.02 mm T ±0.02 mm
Min. Mould Height 80/140 mm To 300 mm
Screw Diameter 22 mm To 55 mm
Injection Volume 38 cubic cm To 475 cubic cm
Injection Weight 34 g & 1.2 oz To 427 g & 15.1 oz
Injection Pressure 1715 Sq. kgf To 1381 Sq. kgf
Pump Motor Power 2 kw To 9.0 kw
Machine Dimensions (L*B*H) 1.8*0.9*2.4 m To 2.5*1.8*4.3 m

Vertical moulding is a very efficient way to quickly and automatically create a string of flaskless high precision moulds that are vertically parted and poured.
