Brief Description:

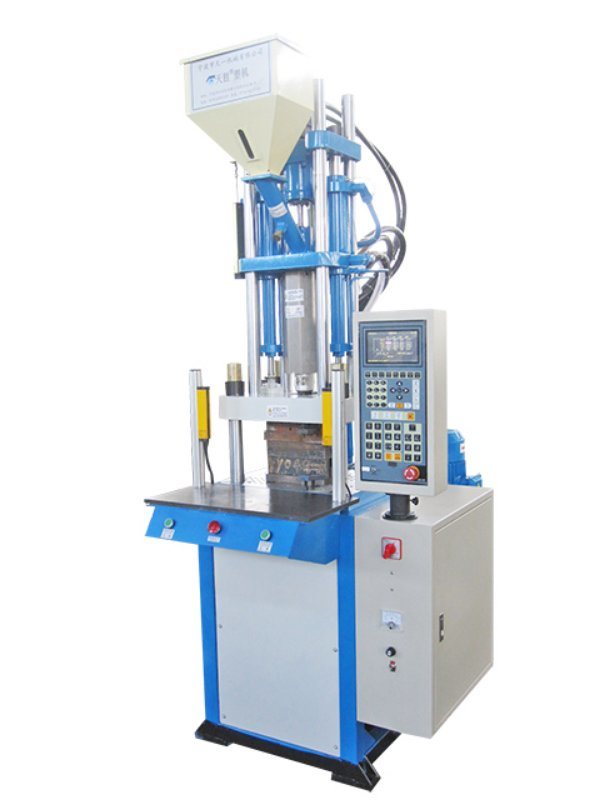

Vertical injection molding machines function the same as traditional horizontal machines, however they are orientated to operate on the vertical axis. This type of machine is available in hydraulic, electric and hybrid executions to meet a range of customer requirements

  • Brief Product Specification:
Clamping Force 45 ton To 120 ton
Platen Size 580*430 mm To 965*765 mm
Space Between Tie Bars 405*255 mm To 635 *410 mm
Min. Mould Height 150 mm To 250 mm
Screw Diameter 35 mm To 70mm
Injection Volume 115 cubic cm To 770 cubic cm
Injection Weight 114 g To 847 g
Injection Pressure 1388 kgf/Sq. cm To 1257 kgf/Sq.cm
Hopper Capacity 30 L
Pump Motor Power 7.5(4) kw To 30(4)
Machine Dimension 1.7*0.9*2.5 m To 3.7*1.3*3.0 m
Machine Weight 2.1 ton To 3 Ton

Vertical moulding is a very efficient way to quickly and automatically create a string of flaskless high precision moulds that are vertically parted and poured.
