| Model No. | AV-70S / AV-128 / AV-1612 |
| Table Size | 850x40 / 1300X850 / 1800X1300 mm |
| Travel X/Y/Z | 700x400x350 / 1200X800X500 / 1600X1200X700 mm |
| Job Weight on Table | 800 / 1500 / 4000 kg |
| Distance between spindle & Table (Min- Max) | 150-500 / 200-700 / 120-820 mm |
| Spindle Type | HSK-E50 / HSK-A63 / HSK-A63 |
| Spindle RPM | 36,000 / 24,000 / 24,000 |
| Spindle Power | 15 / 29 / 29 kg |
| Machine Size (LxWxH) | 2,531 x 1,925 x 2,663 / 2,991 x 2,845 x 3,203 / 4,936 x 3,204 x 3,610 mm |
| Machine Weight | 5700 / 11000 / 17000 kg |

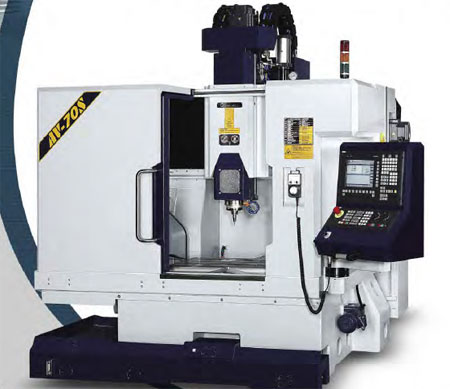

Brief Description:
Quick Jet Machines with high tech built-in motor spindle-FISCHER offers powerful torque for rough cutting with low speed and also high accuracy for finish cutting with high speed. Main apllication of these machines are in manufacturing of medium size of automobile mould, big toy mould, automobile electronic lamp and big size plastic moulds.
- Brief Product Specification:
