Brief Description:

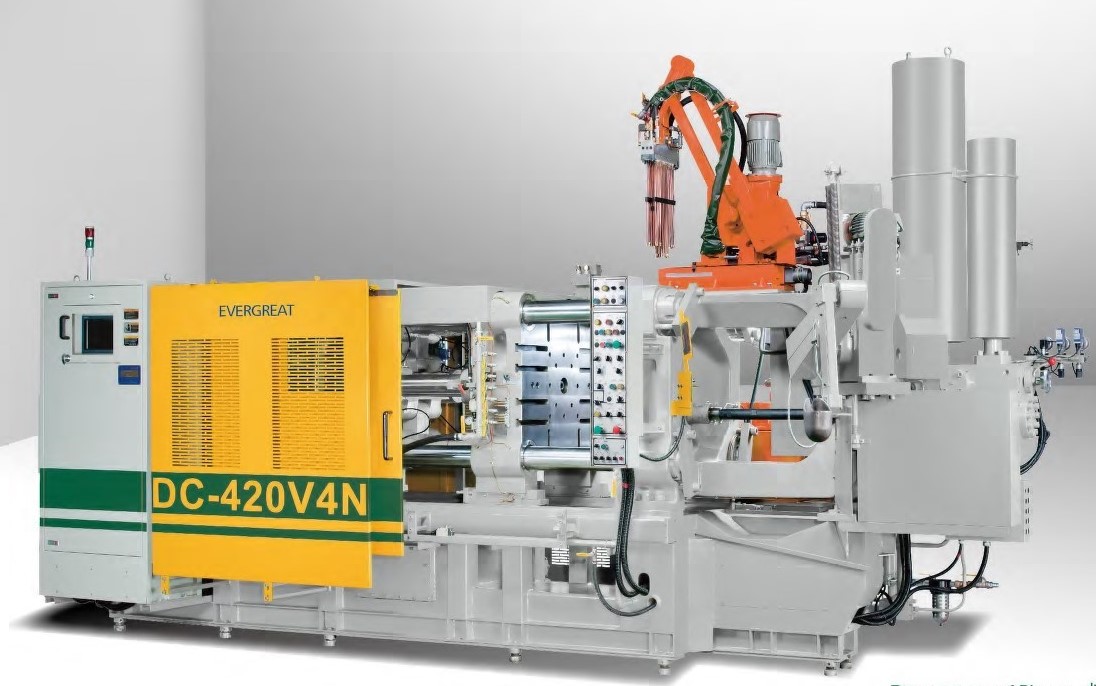

Superior Rigidity & Minimum Deformation is the motto of Evergreat die casting machines, the scructure is optimized by analyzing and designing with effort.

  • Brief Product Specification:
Model No. DC-150 / DC-250 / DC-420
Clamping Force 150 / 250 / 420 Ton
Die Platen Size 730x730 / 890x890 / 1000x1000 mm
Tie-bar spacing 465x465 / 585x585 / 650x650 mm
Die height [min. - max.] 250-500 / 250-600 / 300-700 mm
Injection force 18.2 / 27 / 35 Ton
lnjection pressure 110-130 / 110-140 / 110-140 kg/cm(2)
lnjection weight 0.92-1.16-1.64 / 1.4-2.02-2.75 / 2.35-3.2-4.18 kgs
Casting area 239-118,296-146,426-210 / 363-181,524-262,714-357 / 584-292,794-397,1036-518 cmcm
Main Motor Power 15 / 22.5 / 22.5 kw
Machine size (LXWXH) 4600x1740x 2300 / 5030x1800x2040 / 6500x2200x2500 mm
Machine Weight 6 / 10.5 / 16 Ton

Features (Standard):

  • Hydraulic System
  • Automatic Lubricator
  • Piston-type Accumulator
  • Safety Door

Features (Optional):

  • Two Injection Center
  • Automatic Tie bar pull out device
  • Multi stage Injection control
  • Energy saving hydraulic device
  • E.I.V. Electric Injection valve
